New Business Field

Sievewell

Life Science-Related MaterialsSIEVEWELL(TM)

These devices use transparent, anti-fluorescent materials with microscopic cell-sized structures. It is now being used by universities and research institutes around the world as a cell retention tool to supplement rare cancer cells in the fluid for genetic analysis, and as an analysis tool for the phenomenon known as NETosis/NETs (Neutrophil extracellular traps).

SIEVEWELL Special Site

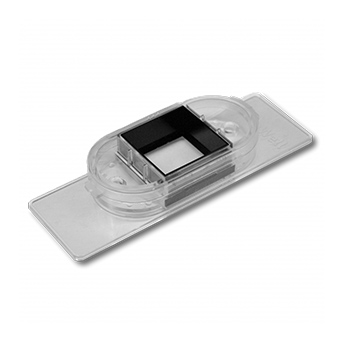

Product Information

  • Dimensions (W x D x H): 25 mm x 75 mm x 12 mm
  • Microscope compatible
  • Chamber area: 17 mm x 17 mm
  • Working volume: 0.5 mL to 2 mL
  • Material: biocompatible polymer, PS, PC
  • Sterilized by gamma radiation
  • 5 pcs per package

Brochure

  20 μm 50 μm
Width 20 μm 50 μm
Depth 25 μm 50 μm
Number of Nanowells 370,000 90,000
Cat # SWS2001-5 SWS5001-5
Blue circle represents diameter 10 μm

Frequently Asked Questions

Is it possible to culture cells in SIEVEWELL Slide?
Yes. SIEVEWELL Slide includes lid for cell culture.

Do cells grow directly on nanowell surface?
Yes. However, some cells attach to nanowell and some cells do not attach but grow in suspended state. Please test culture with your cell of interest with a free sample.

Is it possible to image live cell with SIEVEWELL Slide?
Please find the example of application here.

Is it possible to retrieve cells from SIEVEWELL Slide?
Yes. Cell retrieval is by several pushing back from the side port.

K562 cell retrieval after loading

Is SIEVEWELL Slide compatible with every type of microscope?
SIEVEWELL Slide is compatible with any inverted microscope that has a regular stage or a frame.

Is high-resolution microscopy (40x, 60x, 100x) possible with SIEVEWELL Slide?
High-resolution microscopy is impossible due to the thickness of the bottom plate. However, we will propose the solution for that. Please contact us.

Which solvents and chemicals are compatible with SIEVEWELL Slide?
Acetone: no
Some of the compatible solvents may turn out to be incompatible under certain physical conditions such as temperature, strain, or when used over an extensive period of time.  Please test the chemical compatibility of your compound with a free sample.

What is your recommendation for reusing SEIVEWELL Slide?
We do not recommend reusing the slides.

Product Inquiry

Product Inquiry

If you have any inquiries about this product, please click the button below. Our representative will contact you by return.
